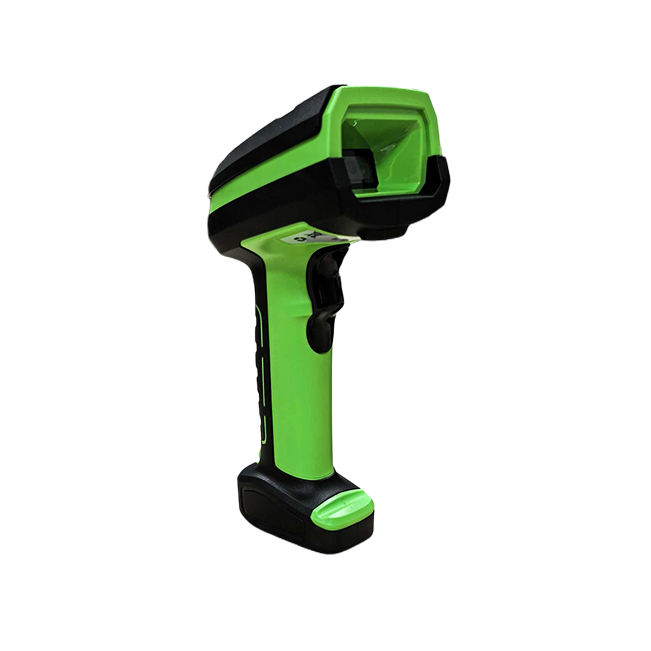

HE200BT Wireless Handheld Barcode Scanner
High-resolution professional engine designed for industrial data collection applications
Product Overview
HE200BT Wireless Handheld Barcode Scanner: Tailor-Made for Demanding Industrial-Grade Data Capture Scenarios! Equipped with a high-performance professional scanning engine and a high-resolution sensor module, it stands as a core equipment for efficient operations across warehousing, logistics, manufacturing, retail, wholesale, and other industries, delivering robust technical support for enterprises to reduce costs and boost efficiency.
Key Features
- Dual-mode wireless communication (Bluetooth 4.0 and 433MHz)
- Extended transmission range: 200m (433MHz) or 20m (Bluetooth)
- High-resolution monochrome imaging CMOS sensor
- Removable 2600mAh battery with over 8 hours continuous scanning
- Rugged construction withstands 1.5m drops
- Comprehensive 1D and 2D barcode symbology support
Technical Specifications
| Scanning Performance |
| Image Sensor | Monochrome Imaging CMOS |
| Pixel Resolution | 1056×1248 |
| Field of View Angle | Horizontal 40°, Vertical 31° |
| Reading Precision | ≥3mil |
| Reading Contrast | ≥15% |
| Reading Angle | Tilt ±60°, Rotation ±360°, Skew ±60° |
| Wireless & Connectivity |
| Wireless Frequency Band | 433MHz/Bluetooth 4.0 Dual Mode |
| Communication Distance | 433MHz: 200m (open area); Bluetooth: 20m (open area) |
| Base Communication Interface | USB or RS232 |
| Power & Battery |
| Battery Capacity | 2600mAh (removable) |
| Charging Time | 4-6 hours |
| Continuous Scanning Time | >8 hours (at 1 scan per second) |
| Storage Capacity | >5000 barcodes |
| Physical Specifications |
| Scanner Dimensions | 211×76×100mm |
| Base Dimensions | 262×101×66mm |
| Scanner Weight | 400g |
| Base Weight | 350g |
| Environmental Specifications |
| Operating Temperature | -10℃ to 50℃ |
| Storage Temperature | -20℃ to 70℃ |
| Relative Humidity | 5% to 95% (no condensation) |
| Drop Resistance | Withstands 50 drops from 1.5m height |
Supported Barcode Symbologies
2D Symbologies
Aztec Code, Han Xin Code, Data Matrix, MaxiCode, QR Code, Micro QR, MQR, Dot Code, Grid Matrix, Codablock A, Codablock F, PDF417, Micro PDF417
1D Symbologies
Codabar, Code11, Code128, ISBT128, Code32, Code39, TLC39, Code93/93i, BC412, UK Plessey, Anker Plessey, EAN-13, EAN-8, GS1, MSI, Telepen, Pharma, PatchCode, UPC-A, UPC-E
